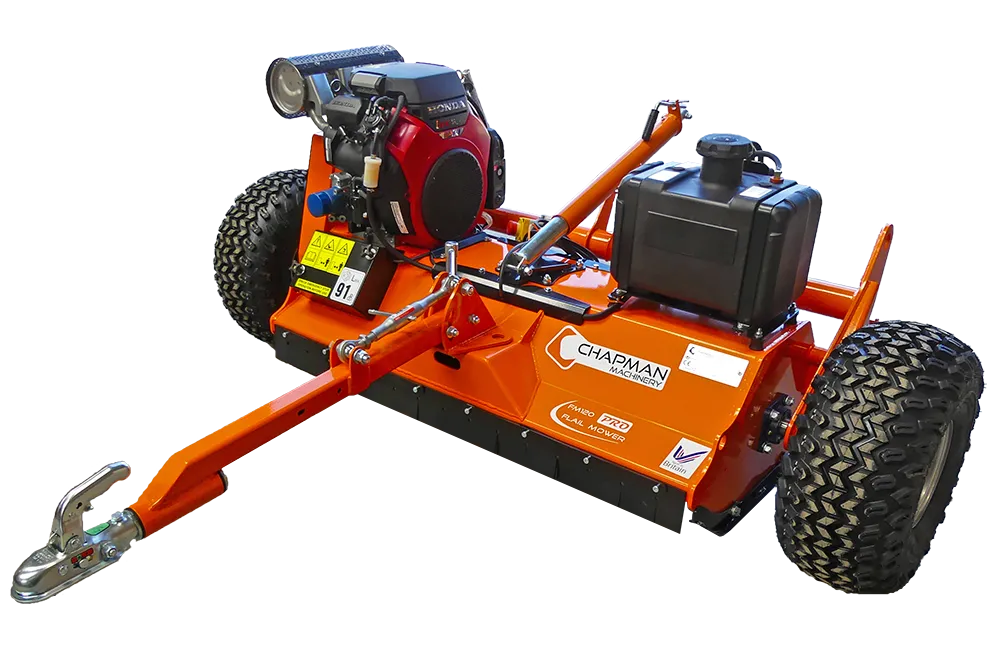

Chapman FM150 ATV Flail Mower
Product Description
The Chapman FM150 ATV Flail Mower is the larger sibling to the FM120, offering a wider 60-inch cutting width for increased productivity. This heavy-duty flail mower is designed for larger ATVs and UTVs, providing professional-grade performance for extensive property maintenance, commercial landscaping, and agricultural applications.
With its robust construction and powerful cutting capability, the FM150 can handle the toughest vegetation including thick brush, dense weeds, and saplings up to 2.5 inches in diameter. It's the ideal choice for those who need maximum cutting capacity and efficiency from their ATV equipment.
Key Features & Specifications
Cutting Performance
- Cutting width: 60 inches (150cm)
- Number of flails: 40 heavy-duty hammers
- Cutting height: Adjustable from 1" to 4"
- Maximum cutting capacity: Up to 2.5" diameter saplings
- Rotor speed: 2,100 RPM
Construction
- Extra heavy-duty steel deck construction
- Reinforced cutting chamber with wear plates
- Replaceable hardened steel flail hammers
- Heavy-duty front and rear chain guards
- Premium powder-coated finish
Power Requirements
- Minimum ATV engine: 500cc recommended
- PTO driven via heavy-duty universal joint shaft
- 540 RPM PTO speed
- Heavy-duty overrunning clutch included
Dimensions & Weight
- Overall width: 64 inches
- Transport width: 60 inches
- Weight: 485 lbs
- Three-point hitch: Category 1
Design Features
Safety Features
- Extra heavy-duty front and rear chain guards
- Reinforced safety deflector chains
- Heavy-duty overrunning clutch
- CE approved safety standards
- Comprehensive safety decals and instructions
Operational Features
- Height adjustment via heavy-duty skids
- Offset capability for fence line mowing
- Self-cleaning deck design
- Easy access panels for maintenance
- Remote grease points for all bearings
Applications
The FM150 excels in demanding applications:
- Large Property Maintenance: Efficiently maintain extensive acreage
- Commercial Landscaping: Professional results for commercial properties
- Agricultural Use: Manage crop stubble and field edges
- Heavy Brush Clearing: Tackle dense vegetation and larger saplings
- Municipal Work: Maintain parks, trails, and public spaces
- Forestry Management: Clear undergrowth in wooded areas

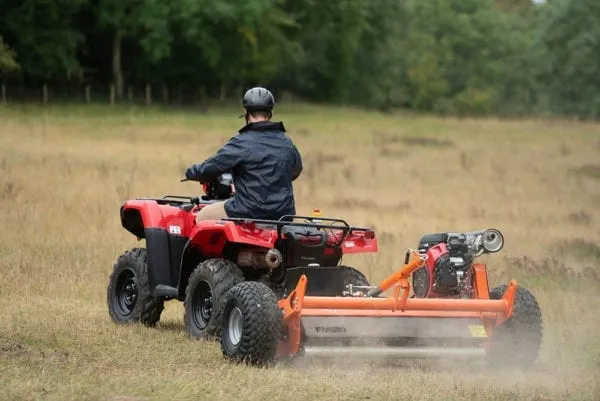

See the FM150 in Action
Video: See the Chapman FM150 flail mower in action with heavy-duty cutting performance and features demonstration.
Optional heavy-duty accessories available
Call for current pricing and availability
How to Order
Ready to maximize your mowing productivity with the Chapman FM150? Contact us today to ensure compatibility with your ATV/UTV and discuss delivery options.
Call us: (845) 482-5222)
Email us: [email protected]
Address: 4510 State Route 52, Jeffersonville, NY 12748
Store Hours: Mon-Fri 8am-5pm, Sat 8am-12pm, Sun closed
Follow Us: Facebook | Instagram
We can help determine if the FM150 is the right choice for your equipment and property size. We also offer professional delivery and setup services.
Why Choose the FM150?
- 60-inch cutting width for maximum productivity
- Heavy-duty construction for commercial use
- Handles larger saplings and tougher vegetation
- Professional-grade performance
- Built to last in demanding conditions
